| 参数名称 | 参数值 |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.9 A |
| Current - Saturation (Isat) | 8.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 36.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package/ Case | Nonstandard |
| Supplier Device Package | SMD |
| Size/ Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
新闻资讯

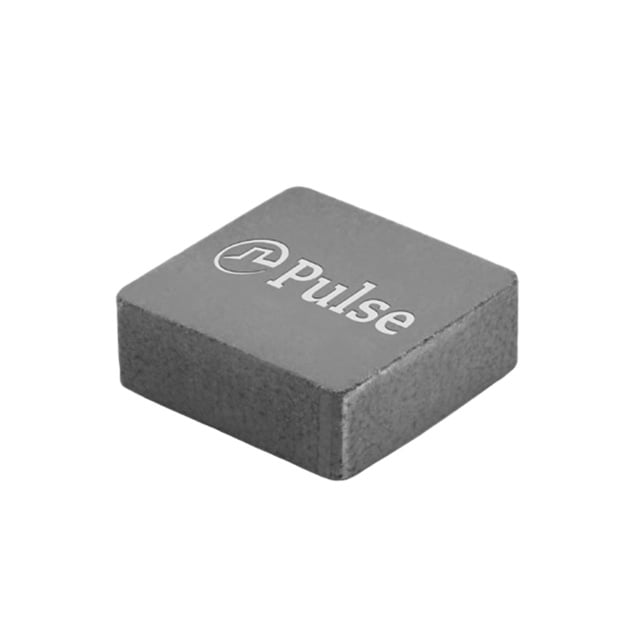

Pulse Electronics 固定电感器 产品 PM2203.472NLT
作为Pulse Electronics优质且资深的代理服务商，深圳凌创辉电子有限公司在为您采购PM2203.472NLT时，能够保证原装进口的品质保障以外，价格也是业界最优的，找我们买PM2203.472NLT绝对的现货正品，需要报价和咨询请您随时联系我们，同时我们为方便您了解PM2203.472NLT产品详情，我们提供了pdf在线观看参数资料，助您轻松采购。
